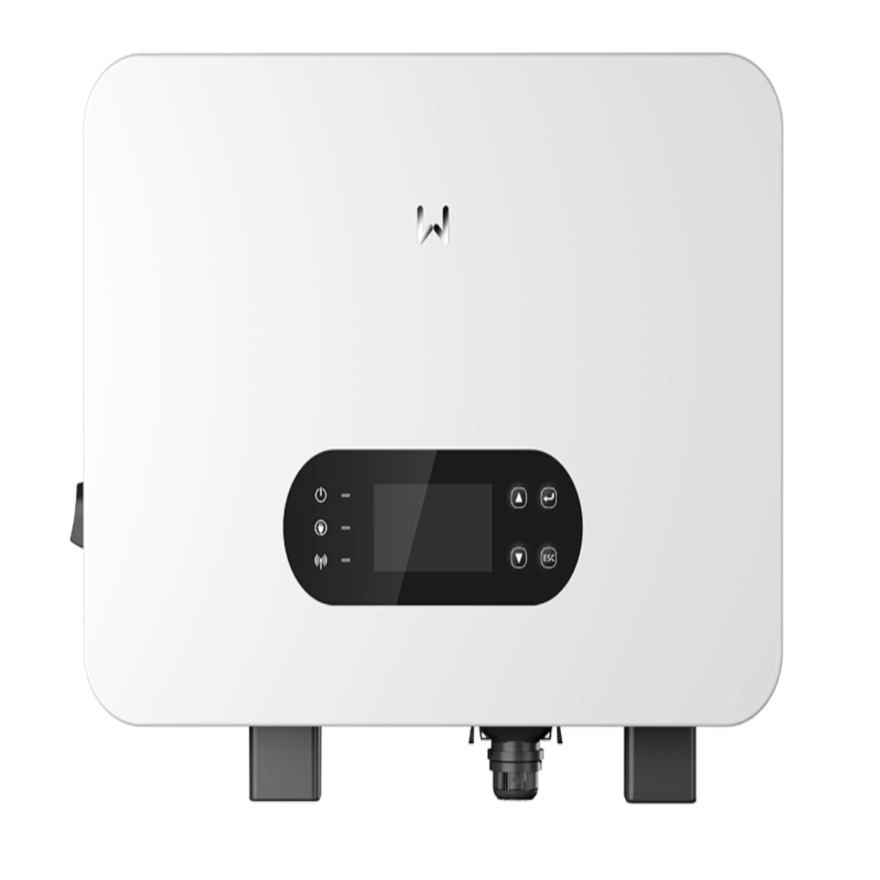

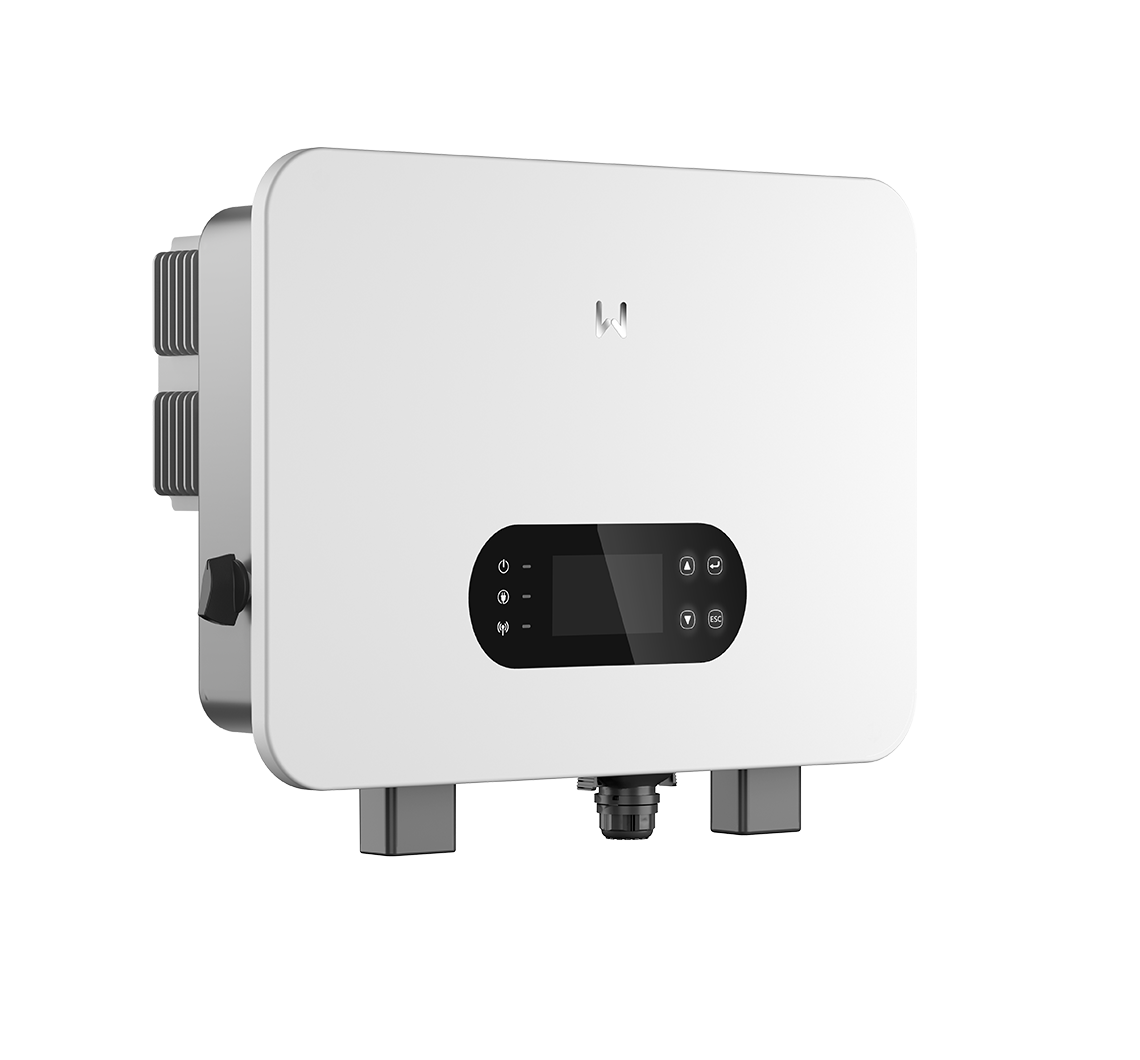

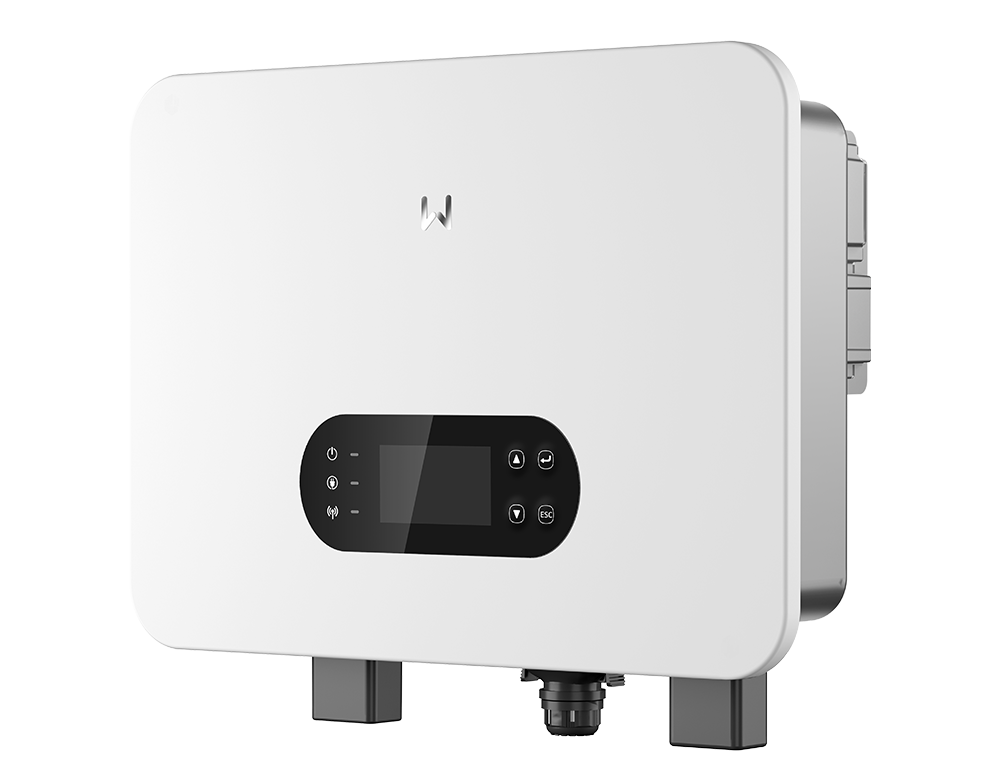

GoodWe ES Uniq GW10K-ES-C10 10kw Hybrid Solar Inverter (Single Phase)
Description: The GoodWe ES Uniq Series GW10K-ES-C10 Hybrid Inverter is a powerful and reliable solution designed for residential and...
- Rs.435,000.00
Rs.455,000.00- Rs.435,000.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.435,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Couldn't load pickup availability
Description
xDescription:
The GoodWe ES Uniq Series GW10K-ES-C10 Hybrid Inverter is a powerful and reliable solution designed for residential and small commercial solar-plus-storage systems. With a wide battery voltage range of 40–60V and up to 10kW nominal AC output, it ensures seamless energy management for both grid-tied and backup applications. Engineered with smart fan cooling, IP66 weatherproof protection, and wall-mounted design, this inverter is built for long-lasting durability in harsh outdoor conditions. Delivering up to 97.6% maximum efficiency and an impressive 99.9% MPPT efficiency, the GW10K-ES-C10 maximizes solar energy harvest while maintaining stable performance. Whether you need reliable grid support, backup power during outages, or optimized battery charging and discharging, this hybrid inverter offers exceptional flexibility and energy independence.
Key Features:
-
High Performance Hybrid Inverter – 10kW AC output with 11kW discharging power for flexible energy storage solutions.
-
Wide Battery Compatibility – Supports 40–60V Li-Ion and lead-acid batteries for diverse energy needs.
-
Maximize Solar Harvest – Up to 20kW PV input power with 99.9% MPPT efficiency.
-
Reliable & Durable – IP66 weatherproof rating and robust wall-mounted design for outdoor installations.
-
Smart Cooling Technology – Efficient fan cooling ensures optimal performance and longer lifespan.
-
Seamless Power Backup – Stable backup output with 50A maximum AC current for uninterrupted supply.
-
High Efficiency – 97.6% maximum inverter efficiency and 95.5% battery-to-AC efficiency for reduced energy loss.
-
Smart Monitoring – Integrated LCD display, WiFi, LAN, and app-based monitoring for real-time control.
GoodWe ES Uniq Series Hybrid Inverter – GW10K-ES-C10
| Specification | Value |
|---|---|
| Model | GW10K-ES-C10 |
| Battery Voltage Range (V) | 40 ~ 60 |
| Max. Charging Power (kW) | 10.0 |
| Max. Discharging Power (kW) | 11.0 |
| Max. PV Input Power (kW) | 20.0 |
| Nominal AC Output Power (kW) | 10.0 |
| Max. AC Current Output (A) | 50 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
| Weight (kg) | 29.0 |
| Dimensions (W × H × D mm) | 560 × 444.5 × 226 |
| Max. Efficiency (%) | 97.6 |
| European Efficiency (%) | 96.2 |
| Max. Battery to AC Efficiency (%) | 95.5 |
| MPPT Efficiency (%) | 99.9 |
| Ingress Protection | IP66 |
| Cooling | Smart Fan Cooling |
| Mounting | Wall Mounted |
| Category | Specification |
|---|---|
| Efficiency | |
| Max. Efficiency | 97.6% |
| European Efficiency | 96.2% |
| Max. Battery to AC Efficiency | 95.5% |
| MPPT Efficiency | 99.9% |
| Protection | |
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| AFCI | Optional |
| Rapid Shutdown | Optional |
| Remote Shutdown | Integrated |
| General Data | |
| Operating Temperature Range | -35°C ~ +60°C |
| Relative Humidity | 0 ~ 95% |
| Max. Operating Altitude | 3000 m |
| Cooling Method | Natural Convection / Smart Fan Cooling |
| User Interface | LCD, WLAN + APP |
| Communication with BMS | CAN |
| Communication | RS485, WiFi + LAN + Bluetooth |
| Communication Protocols | Modbus-RTU, Modbus-TCP |
| Weight (kg) | 29.0 |
| Dimensions (W × H × D) | 560 × 444.5 × 226 mm |
| Topology | Non-isolated |
