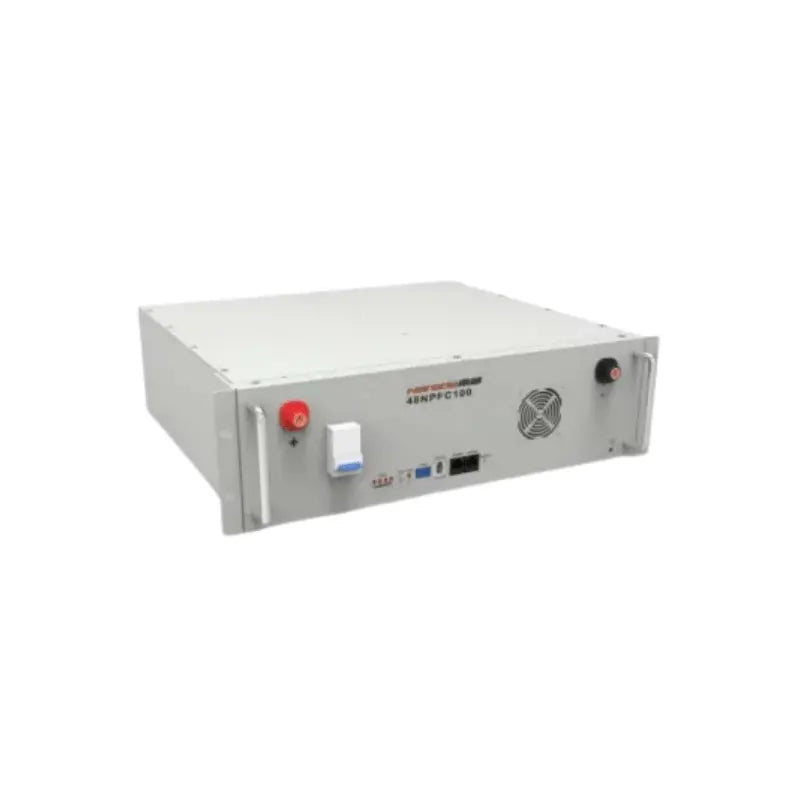

Narada NPFC series is a complete range of 48V LiFePO (Lithium Iron 4 phosphate) battery products, for a wide variety of applications, such as telecom base station, UPS, renewable energy system, etc. with advanced life, standard size, light weight, and strong environmental adaptability.
For standard Narada lithium battery module, BMS is applied to
monitor voltage, current, the temperature of cells and module, take
protections against over-charge, over-discharge, over-current, overtemperature,
under-temperature and short circuit, etc., and provide cell
balancing and current limitations during the charging process to ensure a
reliable safety and excellent performance.
Meantime, Narada supply customized upper computer software for
BMS communication via RS485 to set parameters or read
monitoring data.
Battery Specification | 15S |
---|---|
Rated Voltage |
48V |
Rated Capacity |
100Ah (0.2C to 40.5V @ 25 oC) |
Discharge Current (Max.) |
100A |
Discharge End Voltage |
40.5V |
Charge Current (Recomm.) |
20A |
Charge Current (Max.) |
100A |
Charge Voltage |
54.0±0.5V |
Dimensions |
2V |
Typical Weight |
Approximate 38.5kg |
