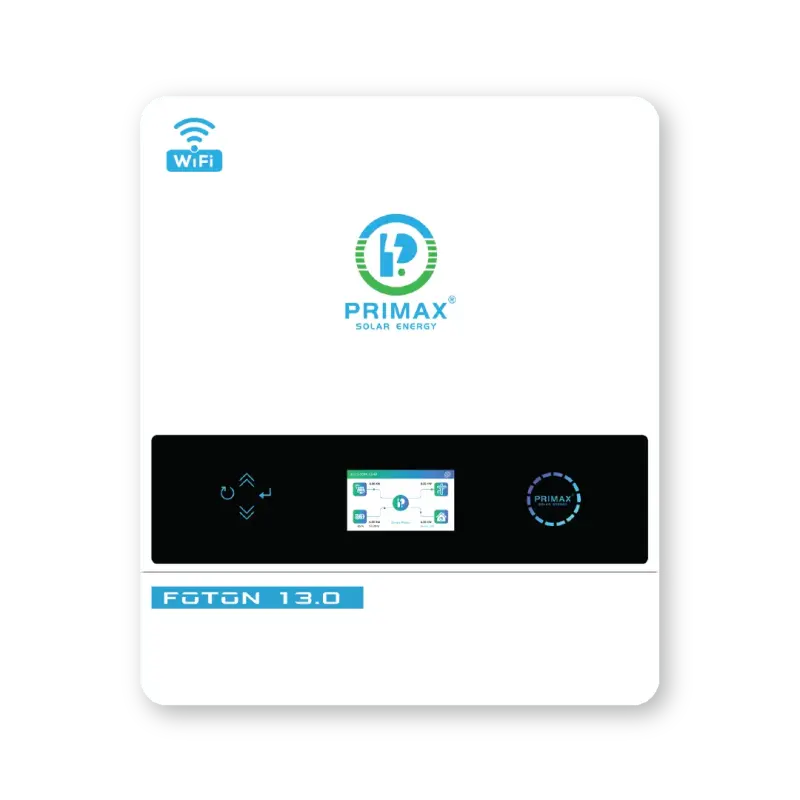

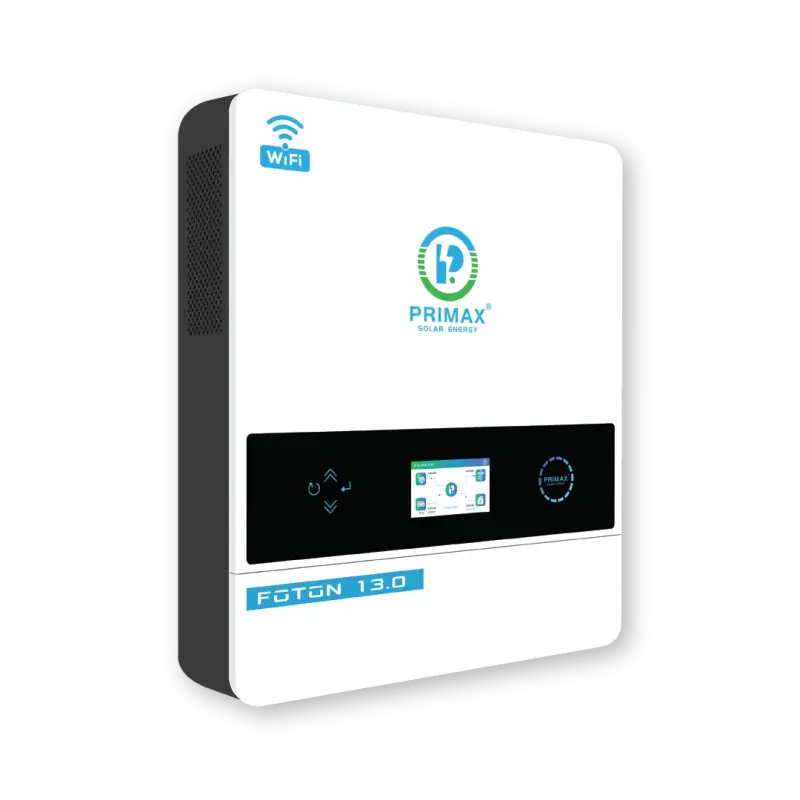

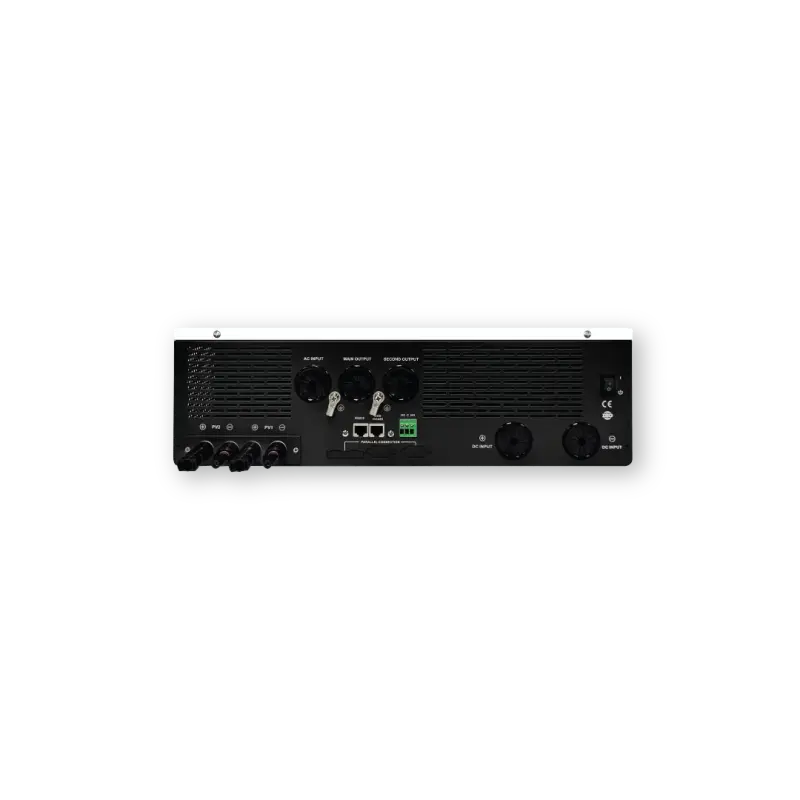

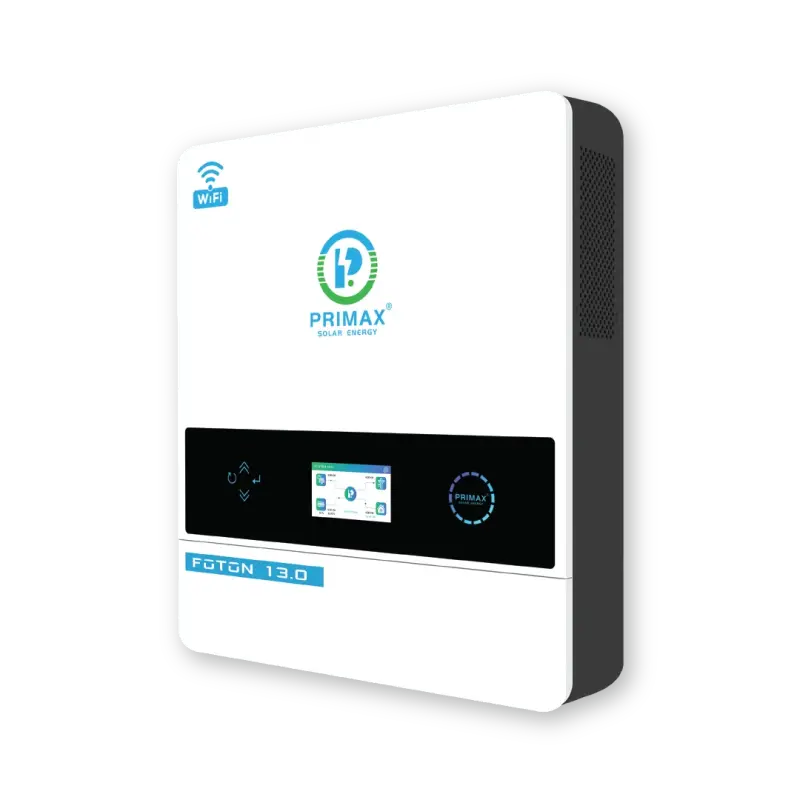

PRIMAX FOTON 13.0 10KW Hybrid Solar Inverter
Primax Foton 13.0 Hybrid Solar Inverter by Primax Solar Energy is a powerful solution with a rated power of 10000W,...
- Rs.260,000.00
Rs.265,000.00- Rs.260,000.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.260,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Couldn't load pickup availability
Description
xPrimax Foton 13.0 Hybrid Solar Inverter by Primax Solar Energy is a powerful solution with a rated power of 10000W, capable of connecting up to 13000W of PV panels. It operates efficiently with a 48V battery system, offering versatile energy management for both residential and commercial use.
Features:
- Enhanced inverter output power under PV mode
- Touch LCD screen, intuitive parameter display, and convenient user operation method
- Novel and fashionable RGB atmosphere lights indicator
- Dual Output & Dual PV input with 13000W high PV power, supporting more panels
- Support WiFi monitoring & setting
- Working with or without battery
Product Specifications :
Download DataSheet
| Model | Foton 13.0 |
|---|---|
| Input | |
| Phase | Single Phase |
| Nominal Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (Normal Mode) / 170-280VAC±3V (UPS Mode) |
| Frequency Range | 50Hz/60Hz (Adaptive) |
| Rated Power | 10000W |
| Output | |
| PV Mode | 10000W |
| Battery Mode / AC Mode | 8800W |
| Output Voltage(AC) | 220/230/240VAC±5% |
| Dual Output Rated Power | Main Load: 8800W , Second Load : 8800W |
| Waveform | Pure Sine Wave |
| Transfer Time (Adjustable) | 10ms for Computer, 20ms for Home Appliances |
| Peak Power | 17200VA |
| Overload/Battery Mode | 105%-150% Load: 15s; 200% Load: 2s; 200% Load: 400ms |
| Peak Efficiency (Battery Mode) | 94% |
| Output Voltage | 220/230/240VAC |
| Grid-tie | |
| Feed-in Grid Voltage | 175 - 265 VA |
| Feed-in Grid Frequency Range | 49.5-51.5Hz / 59-61.4Hz |
| Rated Feed-in Grid Current | 37.4A |
| Peak Efficiency (DC/AC) | 98% |
| Battery | |
| Rated Voltage | 48VDC (Adjustable) |
| Constant Voltage Charging Voltage | 56.4VDC (Adjustable) |
| Floating Charge Voltage | 54VDC (Adjustable) |
| PV Charging Method | |
| PV Max Input Power | Dual MPPT: 13000W (6500W+6500W) |
| MPPT Tracking Range | 90-500 VDC |
| Charger | |
| Best PV Voltage Range | 360-430 VDC |
| Max PV Input Voltage | 500 VDC |
| Max PV Input Current | 27A + 27A |
| Max AC Charging Current | 150A |
| Communication | |
| RS232 | For External WiFi / Monitoring & Update |
| RS485 | For BMS Communication |
| Communication Port | Dry Contact |
| Dry Contact | Support sending signal to start generator |
| Environmental parameters | |
| Operating environment temperature | -10-50°C |
| Operating environment humidity | 20%-95% (Non-condensing) |
| Storage temperature | -15-60°C |
| Altitude | Altitude should not exceed 1000m, derating above 1000m, up to 4000m |
| Noise | |
| Certifications | IEC 62010-1; IEC 62019-2; IEC 61883 |
