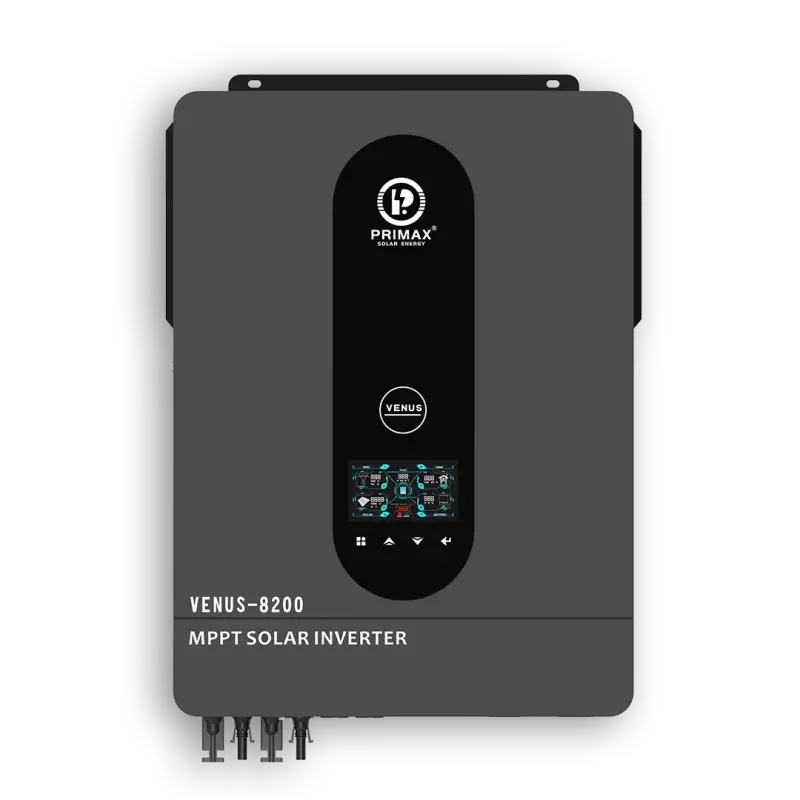

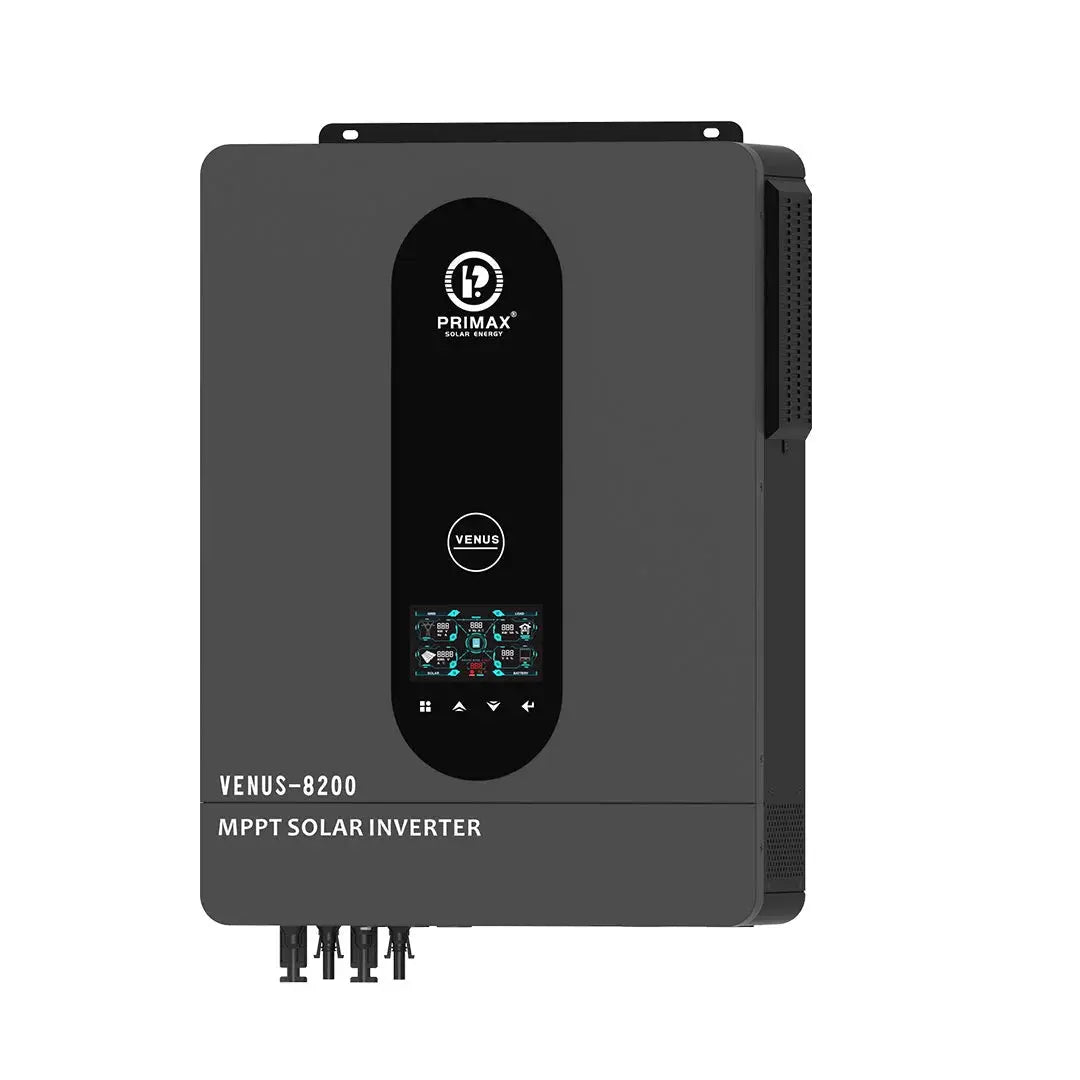

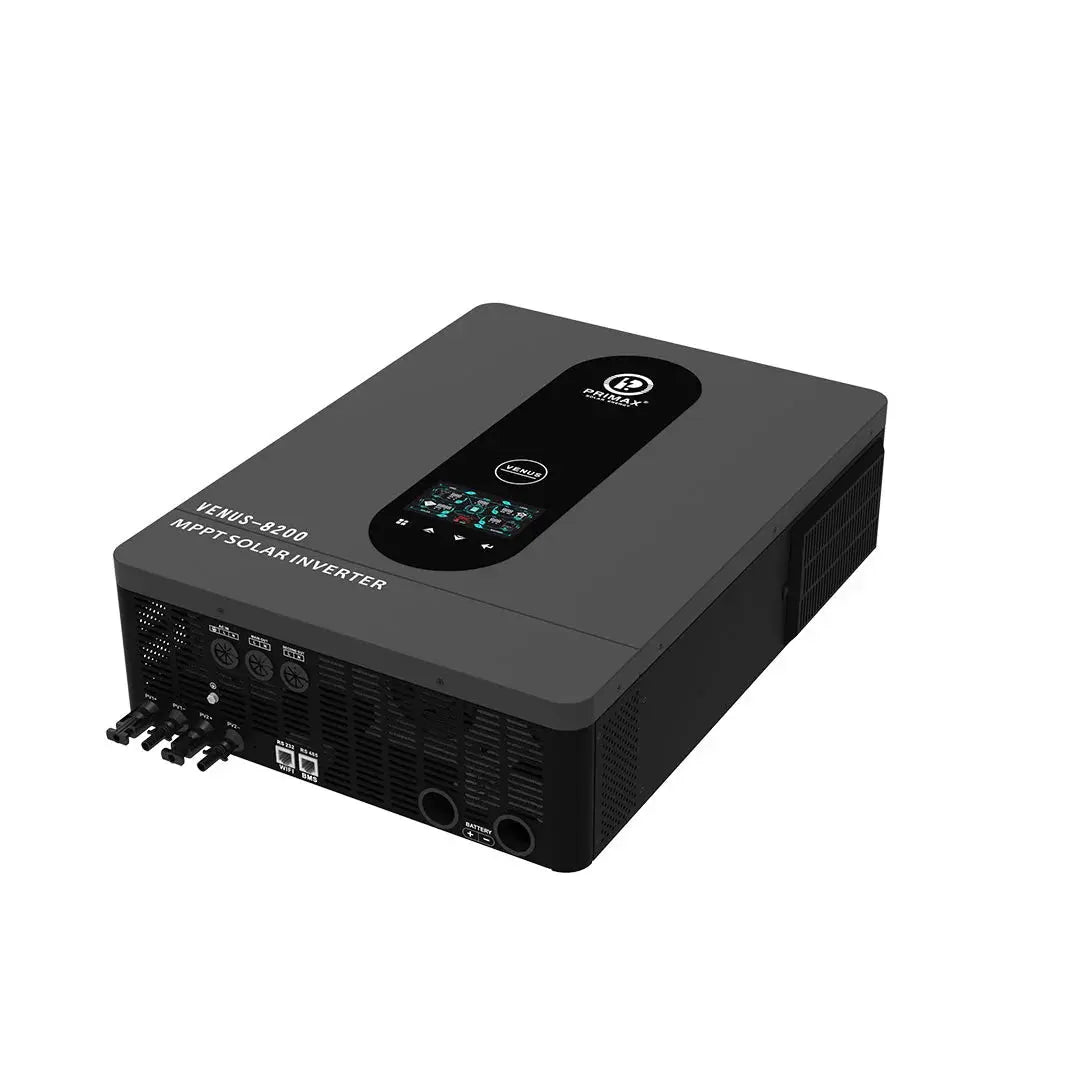

PRIMAX VENUS 8200 Hybrid Solar Inverter 8.2KW Dual Output
PRIMAX VENUS 8200 Hybrid Solar Inverter 8.2KW (2024 Model) A versatile and efficient hybrid solar inverter for...
- Rs.210,000.00
Rs.215,000.00- Rs.210,000.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.210,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Couldn't load pickup availability
Description
xPRIMAX VENUS 8200 Hybrid Solar Inverter 8.2KW (2024 Model)
A versatile and efficient hybrid solar inverter for both on-grid and off-grid energy systems. Built with advanced features, it offers reliable performance and flexibility for various applications.
Key Features
- Pure Sine Wave Output: Provides clean and stable power, ideal for sensitive electronics.
- Dual Mode Operation: Supports both on-grid and off-grid configurations.
- High Output Efficiency: Power factor of 1.0 for maximum energy efficiency.
- Battery-Free Functionality: Operates without a battery for cost-effective system setups.
- Smart Battery Features: Includes automatic Lithium battery activation and optimized charging design for longer battery life.
- High PV Input Capacity: Dual PV input supports up to 10,200W (5,600W x 2), with a wide input voltage range of 90-500V DC.
- Powerful MPPT Charger: Built-in 160A MPPT for efficient solar energy utilization.
- User-Friendly Design: Features a touch button interface and one-key factory reset option.
- WIFI & GPRS Connectivity: Optional connectivity for remote monitoring via iOS and Android apps.
- Built for Tough Conditions: Comes with an anti-dust kit for operation in harsh environments.
- Dual Output: Allows distribution of power to multiple systems simultaneously.
The PRIMAX VENUS 8200 is a robust and intelligent solution for residential and small commercial solar power needs, delivering outstanding performance and reliability.
Specifications:
| Phase | 1-Phase |
| Maximum PV Input Power | 5600W x 2 (10200W) |
| Rated Output Power | 8200W/8200VA |
| Maximum Solar Charging Current | 160A |
| GRID-TIE OPERATION | |
| PV Input (DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90VDC-450VDC |
| Number of MPPT Trackers/Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 195-253VAC |
| Nominal Output Current | 35.6A |
| Power Factor | >0.99 |
| Feed-in Grid Frequency Range | 49-51+1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO-LOAD OUTPUT POWER | |
| Full Load | 8200W |
| Maximum Main Load | 8200W |
| Maximum Second Load(Battery mode) | 2733W |
| Main Load Cut-Off Voltage | 52VDC |
| Main Load Return Voltage | 54VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 40A |
| Nominal operating frequency | 50/60Hz |
| Surge Power | 16400W |
| PV INPUT(DC) | |
| Maximum DC Voltage | 500VDC |
| MPPT Voltage Range | 90VDC-450VDC |
| Number of MPPT Trackers/Maximum Input Current | 2/18A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure sine wave |
| Efficiency(DC to AC) | 94% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charging Current | 160A |
| Maximum AC Charging Current | 140A |
| GENERAL PHYSICAL | |
| Dimension, D X W X H(mm) | 500*390*130 |
| Cartoon Dimension, D X W X H(mm) | 588*463*205 |
| Net Weight(kgs) | 14.5 |
| Gross Weight(kgs) | 16 |
| INTERFACE | |
| Communication Port | RS232/WIFI/GPRS/LITHIUM |
| BATTERY | |
