SolarMax Falcon 6kw with PV6500 IP21

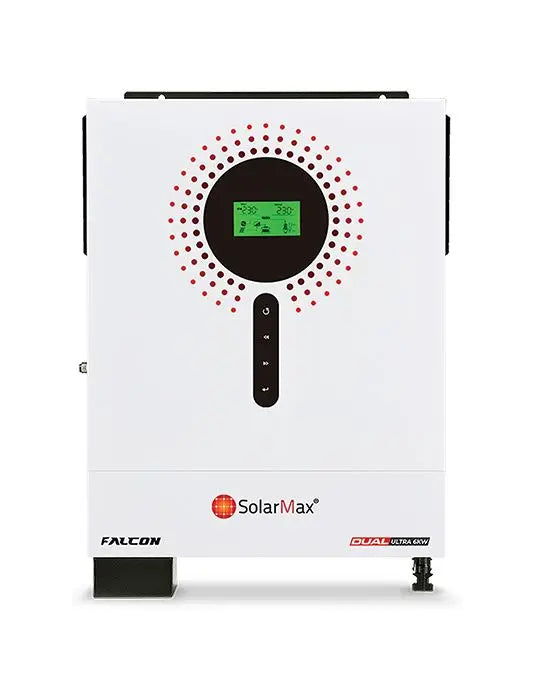

SolarMax Falcon 6KW Solar

The SolarMax Falcon 6KW is a powerful inverter designed for high efficiency and reliable performance. Featuring an advanced MPPT solar charger controller, it is ideal for off-grid solar installations where energy independence and system performance are crucial.

Key Features

• Rated Power: 6000VA/6000W, suitable for residential and small commercial applications.
• AC Input Voltage: 230V AC, with selectable voltage ranges of 170-280 VAC (for personal computers) and 90-280 VAC (for home appliances).
• Frequency Range: 50Hz/60Hz (auto sensing) for compatibility with various power systems.
• Surge Power: 12,000VA for handling power surges during startup or heavy load conditions.
• Output Waveform: Pure sine wave, providing stable and clean power for sensitive equipment.
• AC Voltage Regulation: ±5% in battery mode for stable power delivery.
• Dual AC Output: 6000W, allowing for smart load management between main and smart loads.
• Battery Voltage: 48V DC, ensuring efficient energy storage and system operation.
• Battery Protection: Includes overcharge protection (up to 63V) and a low voltage cut-off schedule (42V - 49V) to safeguard battery health.
• MPPT Solar Charger Controller:
  • Maximum PV array open circuit voltage: 500VDC
  • Maximum PV array power: 6000W+
  • MPPT range: 60V to 450V DC
  • Maximum charge current: 120A
  • Maximum PV input current: 27A
  • Efficiency: 98% for optimal energy conversion.
• SOC Display: Shows battery states, percentage, and voltage for easy monitoring.
• Communication Interface: Built-in WiFi, RS232/RS485, BMS compatible with lithium batteries (RS-485).
• Display: LCD screen for clear and accessible information on system status and settings.
• Operating Environment:
  • Humidity: 5% to 95% (non-condensing)
  • Operating temperature: -10°C to 50°C
  • Storage temperature: -15°C to 60°C
• Physical Dimensions: 136mm x 323.6mm x 449.3mm, weighing 10.3 kg for compact installation.
• Warranty: 2-year parts replacement warranty for peace of mind.

The SolarMax Falcon 6KW off-grid inverter is an excellent solution for those seeking high efficiency, reliability, and smart load management in off-grid solar systems. Its advanced features, including the MPPT charge controller, dual AC outputs, and communication capabilities, make it a versatile and dependable choice for powering homes and businesses with solar energy.

Note : (Two Year parts replacement warranty)
