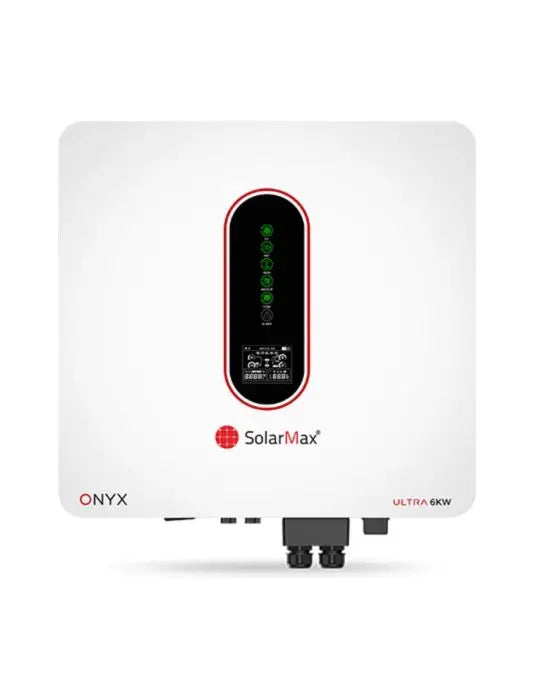

SolarMax Onyx 6KW
SolarMax® ONYX ULTRA 6KW Inverter Unbeatable Performance, Unmatched Customer Support! SolarMax Inverter ensures seamless power supply &...
- Rs.275,000.00
Rs.285,000.00- Rs.275,000.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.275,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Couldn't load pickup availability
Description
xSolarMax® ONYX ULTRA 6KW Inverter
Unbeatable Performance, Unmatched Customer Support!
SolarMax Inverter ensures seamless power supply & reduced bills. Our Onyx Ultra 6KW inverter offers unparalleled efficiency and unwavering reliability. Whether for Domestic or Commercial use — we've got you covered!
- ✅ Pure Sine Wave 6KW
- ✅ Dual AC Output for Normal & Heavy Load
- ✅ 9KW DUAL MPPT PV Input
- ✅ Built-in Bluetooth for Quick Commissioning via Mobile App
- ✅ Free Wi-Fi Dongle for Monitor & Control
- ✅ Short-Circuit Protection – Smart & Safe
- ✅ Smart Power Management – Set Multiple Schedules
- ✅ BMS Built-in (Battery Management System)
- ✅ Built-in CT Function for Self-Consumption Applications
- ✅ Syncs with Generator – Auto Start Feature
- ✅ Reset ON/OFF Button
- ✅ 6 Units Parallel in Single & Three Phase (Built-in)
Warranty:
🛠️ 5 Years Replacement Warranty
🔧 Lifetime Free Service Warranty (T&C Apply)
🔧 Technical Specifications
| Model | |
|---|---|
| Model | SM-ONYX-UL-6KW |
| Input (PV) | |
| MAX PV Power (W) | 9000W |
| Max PV Voltage (V) | 550VDC |
| Max Input Current (A) | 30A (15A + 15A) |
| Max Short Circuit Current (A) | 40A (20A + 20A) |
| Start Operating Voltage (V) | 90VDC |
| MPPT Voltage Range (V) | 70–520VDC |
| No. of MPPT Trackers | 2 |
| Strings per MPPT Tracker | 1 |
| Input (Battery) | |
| Compatible Battery Type | Lithium-ion / Lead-acid |
| Nominal Battery Voltage | 48VDC |
| Battery Voltage Range | 40–60VDC |
| Max Charge/Discharge Current | 120A / 120A |
| Max Charge/Discharge Power | 6000W / 6000W DUAL |
| Charging Curve | 3 Stages / Equalization |
| Lithium Battery Charge Curve | Self-adaption to BMS |
| Output (Grid) | |
| Nominal AC Output Power | 6000W DUAL |
| Max. AC Output Apparent Power | 6000VA DUAL |
| Max. AC Output Power | 6000W DUAL |
| Max. AC Output Current | 27.2A |
| Rated AC Voltage | 220VAC |
| AC Voltage Range | 150–300VAC (Adjustable) |
| Rated Grid Frequency | 50Hz / 60Hz |
| AC Frequency Range | 45–55Hz / 55–65Hz (Adjustable) |
| Grid Connection | Single Phase |
| THDI | <3% |
| Output (Backup) | |
| Nominal Output Voltage | 230VAC |
| Nominal Output Frequency | 50 / 60Hz |
| Nominal Output Power | 6000W |
| Nominal Output Current | 26A |
| Transfer Time | 10ms (typ) / 20ms (max) |
| THDV | <3% @ 100% R Load |
| Protection | |
| Protection Category | Class I |
| DC Switch | Support |
| Anti-Islanding Protection | Support |
| AC Overcurrent Protection | Support |
| AC Short Circuit Protection | Support |
| DC Reverse Connection | Support |
| Surge Arrester | DC Type III, AC Type III |
| Insulation Detection | Support |
| Leakage Current Protection | Support |
| PV Overvoltage Category | III |
| AC Overvoltage Category | III |
| Efficiency | |
| Max Efficiency (PV to AC) | >97.3% |
| Max Efficiency (BAT to AC) | >94.0% |
| MPPT Efficiency | >99.0% |
| General | |
| Max Operating Altitude | <4000 m |
| Noise Emission | <35 dB |
| Operating Temperature | -25 to 60°C |
| Relative Humidity | 0–100% |
| Cooling Method | Natural Cooling |
| Mounting | Wall Bracket |
| Dimensions (W*H*D) | 515 x 450 x 175 mm |
| Weight | 25 kg |
| Connection | |
| PV Connection Way | MC4/H4 |
| Battery Connection Way | Dedicated DC Connector |
| AC Grid & Backup Connection | Dedicated AC Connector |
| HMI & Communication | |
| Display | LCD + LED + APP |
| Communication Interface | RS485/CAN (BMS), RS485 (Meter), USB, DRM, Bluetooth, Wi-Fi, Optional: GPRS/Ethernet |
Product specifications are subject to change without further notice.
