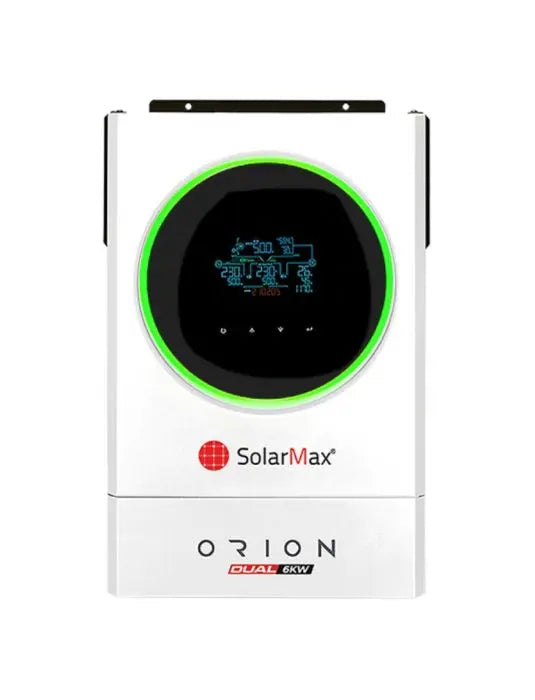

Power your home or business with confidence using the SolarMax Orion Dual 6KW MPPT Inverter — a top-tier solution for seamless, reliable, and efficient solar energy. Built with advanced A-grade semiconductors and intelligent safety features, this inverter is designed for both domestic and commercial applications. Whether you're connected to the grid or running without batteries, Orion’s performance is unmatched.
Pure Sine Wave 6KW Solar MPPT Inverter
7000W Maximum PV Input Capacity
Works With & Without Battery (48VDC)
High Efficiency MPPT Technology (120V–450V Range)
Built-in Smart Short-Circuit Protection
A-Grade Semiconductor Components for Maximum Reliability
Auto Restart with Wide AC Input Range
Parallel Operation up to 9 Units
USB / RS232 / RS485 / WiFi / Dry-Contact Communication
🔄 2 Years Unlimited Parts Replacement
♾ Lifetime Free Service Warranty (T&C Apply)
Whether you're upgrading your energy setup or stepping into solar for the first time, SolarMax Orion Dual 6KW delivers performance, protection, and peace of mind — backed by Pakistan’s most trusted solar brand.
Category | Specification |
---|---|
Model | SM-ORION-DUAL 6KW |
Phase | 1-phase in / 1-phase out |
Maximum PV Input Power | 7000W |
Rated Output Power | 6000W DUAL |
Maximum Charging Power | 6000W |
Specification | Value |
---|---|
Nominal DC Voltage / Max DC Voltage | 360 VDC / 500 VDC |
Start-up Voltage / Initial Feeding Voltage | 120 VDC / 150 VDC |
MPPT Voltage Range | 120 VDC ~ 450 VDC |
Number of MPP Trackers / Max Input Current | 1 / 27 A |
Specification | Value |
---|---|
Nominal Output Voltage | 220/230/240 VAC |
Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) |
Nominal Output Current | 26.1 A |
Specification | Value |
---|---|
Max Conversion Efficiency (DC to AC) | 96% |
Specification | Value |
---|---|
AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
Max AC Input Current | 40 A |
Specification | Value |
---|---|
Nominal Output Voltage | 220/230/240 VAC |
Output Waveform | Pure Sinewave |
Efficiency (DC to AC) | 93% |
Specification | Value |
---|---|
Nominal DC Voltage | 48 VDC |
Max Solar Charging Current | 120 A |
Max AC Charging Current | 120 A |
Max Charging Current | 120 A |
Specification | Value |
---|---|
Dimension (D x W x H) | 140 x 295 x 468 mm |
Net Weight | 12 kg |
Specification | Value |
---|---|
Parallel Function | Yes, up to 9 units |
Communication Ports | USB / RS232 / RS485 / WiFi / Dry-contact |
