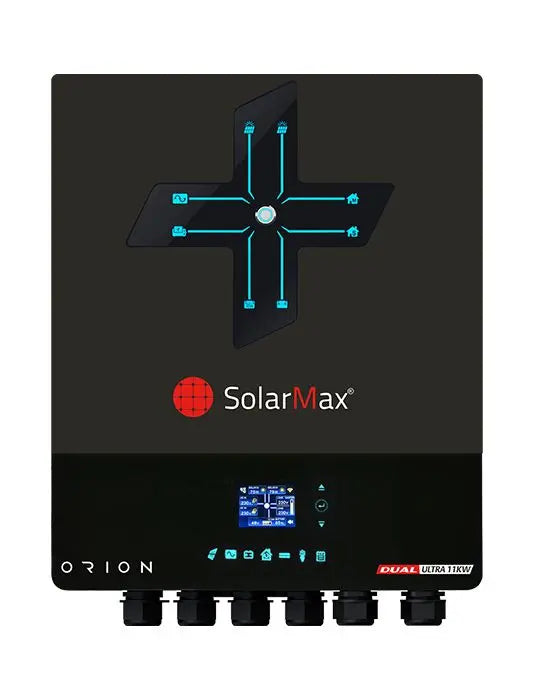

SolarMax Orion Ultra 11KW
The SolarMax Orion Ultra 11KW inverter is engineered for powerful energy management, combining dual AC input/output, Wi-Fi...
- Rs.360,000.00
Rs.370,000.00- Rs.360,000.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.360,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Couldn't load pickup availability
Description
xThe SolarMax Orion Ultra 11KW inverter is engineered for powerful energy management, combining dual AC input/output, Wi-Fi monitoring, and intelligent load control. Ideal for both domestic and commercial needs, this unit ensures maximum uptime, smart scheduling, and top-tier safety — all backed by Pakistan’s most trusted solar brand.
✅ Key Features:
-
Pure Sine Wave 11KW Inverter
-
Dual AC Output for Normal & Heavy Loads
-
Dual AC Input (Utility + Generator with Auto Switching)
-
12KW Dual MPPT PV Input (6000W x 2)
-
Works With & Without Battery (48VDC)
-
Smart Load Management with Time Scheduling
-
Built-in Battery Management System (BMS)
-
Built-in Wi-Fi for Remote Monitoring & Control
-
Short-Circuit Protection & A-Grade Semiconductors
-
Parallel Capability: 6 Units in Single or Three Phase (Kit Built-in)
🛠 Warranty:
-
🔁 2 Years Unlimited Parts Replacement
-
🧰 Lifetime Free Service Warranty (Terms & Conditions Apply)
SolarMax® Orion Ultra 11KW Inverter – Technical Specifications
| Model Information | |
|---|---|
| Model | SM-ORION-ULTRA-11KW |
| Rated Inverter Power | 11000VA / 11000W |
| Parallel Capability | 6 Units in Single & Three Phase |
| Input (Utility & Generator Power) | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Computers) 90–280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| Output | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 22000VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10 ms (For PCs), 20 ms (For Home Appliances) |
| Dual AC Output (Main & Smart Load) | 11000W |
| Battery | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 12000W (6000W x 2) |
| MPPT Range @ Operating Voltage | 90 – 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27A x 2 (MAX 40A) |
| Maximum Solar Charging Current | 150A |
| Maximum AC Charging Current | 150A |
| Maximum Charging Current | 150A |
| Interface | |
| Display | LED lighting indicators, colored LCD |
| Communication Interface | Built-in USB / RS232 / RS485 / WiFi / Dry-contact / BTS |
| Support | Optional GFCI, Rapid Shutdown, AFCI Detection |
| External Current Sensor Port | Yes, built-in current transformer sensor |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Physical | |
| Dimensions (D x W x H) | 158.4 x 503.6 x 530.8 mm |
| Net Weight | 20 kg |
Product specifications are subject to change without further notice.
