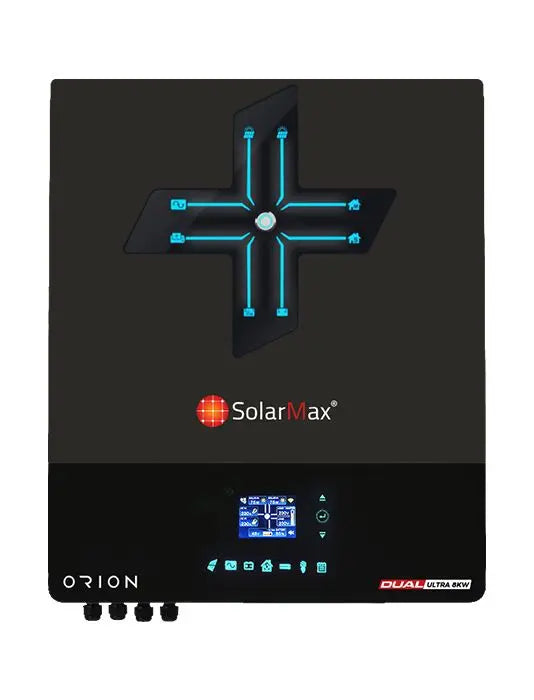

SolarMax Orion Ultra 8KW
Experience next-level energy efficiency with the SolarMax Orion Ultra 8KW, a smart solar inverter designed for high-demand...
- Rs.300,000.00
Rs.310,000.00- Rs.300,000.00
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.300,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Couldn't load pickup availability
Description
xExperience next-level energy efficiency with the SolarMax Orion Ultra 8KW, a smart solar inverter designed for high-demand domestic and commercial use. With dual AC input/output, built-in Wi-Fi, and intelligent power management, this system ensures maximum output, zero interruptions, and total control of your energy flow.
✅ Key Features:
-
Pure Sine Wave 8KW Solar Inverter
-
Dual AC Output for Normal & Heavy Loads
-
Dual AC Input (Utility + Generator Auto Switch)
-
10KW Dual MPPT PV Input (5000W x 2)
-
Works With & Without Battery (48VDC)
-
Built-in Battery Management System (BMS)
-
Smart Load Scheduling with Time-Based Settings
-
Built-in Wi-Fi, LCD Display & Mobile Monitoring
-
6 Units Parallel (Single & Three Phase) – Parallel Kit Built-in
-
Short-Circuit Protection – Smart & Safe
-
A-Grade Semiconductors for Maximum Reliability
🛠 Warranty:
-
🔁 2 Years Unlimited Parts Replacement
-
🧰 Lifetime Free Service Warranty (Terms & Conditions Apply)
📊 Technical Specifications Table (As Per Datasheet)
| Category | Specification |
|---|---|
| Model | SM-ORION-ULTRA-8KW |
| Rated Inverter Power | 8000VA / 8000W |
| Parallel Capability | 6 Units in Single & Three Phase |
🔌 INPUT (Utility & Generator Power)
| Specification | Value |
|---|---|
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
⚡ OUTPUT
| Specification | Value |
|---|---|
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10 ms (PCs), 20 ms (Home Appliances) |
| Dual AC Output (Main & Smart Load) | 8000W |
🔋 BATTERY
| Specification | Value |
|---|---|
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
🔆 SOLAR CHARGER & AC CHARGER
| Specification | Value |
|---|---|
| Charger Type | MPPT |
| Max PV Array Power | 10000W (5000W x 2) |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC |
| Max PV Array Open Circuit Voltage | 500 VDC |
| Max PV Input Current | 27A x 2 (MAX 40A) |
| Max Solar Charging Current | 150A |
| Max AC Charging Current | 120A |
| Max Charging Current | 150A |
📡 INTERFACE
| Specification | Value |
|---|---|
| Display | LED lighting indicators, colored LCD |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact / BTS |
| Smart Monitoring | Built-in Wi-Fi, Supports GFCI, Rapid Shutdown, AFCI |
| Current Sensor | Yes, built-in |
🌡️ OPERATING ENVIRONMENT
| Specification | Value |
|---|---|
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
📐 PHYSICAL
| Specification | Value |
|---|---|
| Dimensions (D x W x H) (mm) | 158.4 x 503.6 x 530.8 |
| Net Weight | 20 kg |
