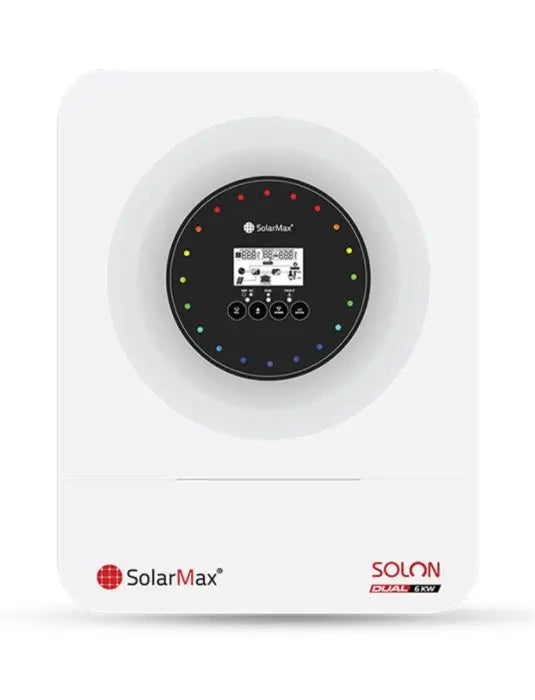

SolarMax Solon 6kw with PV6000+ IP21

SolarMax Solon Dual Series 6KW Off-Grid /Hybrid Inverter

The SolarMax Solon Dual Series 6KW is a versatile inverter designed to work with or without a 48V battery. It features advanced MPPT technology, dual AC outputs for different load types, and built-in WiFi for remote monitoring. This inverter offers reliability, ease of use, and efficient power conversion for residential and small commercial applications.

Key Features

• Rated Power: 6000W, suitable for both normal and heavy load applications.
• AC Input Voltage: 230V AC, with selectable voltage ranges of 170-280 VAC (for personal computers) and 90-280 VAC (for home appliances).
• Frequency Range: 50Hz/60Hz (auto sensing) to match local grid requirements.
• Surge Power: 12,000 VA, ideal for handling power surges during startup.
• Pure Sine Wave: Ensures stable, clean power output for sensitive electronics.
• AC Voltage Regulation (Battery Mode): 230V AC ± 5% for stable output.
• Dual AC Output: 6000W total, supporting both main load and smart load.
• Battery Voltage: 48V DC, providing robust energy storage.
• Battery Protection:
  • Floating Charge Voltage: 54V DC
  • Overcharge Protection: 61V DC
  • Low Voltage Cutoff: 42V-49V range
  • High Voltage Range Selectable: 50V-60V
  • SOC Display: Displays battery state in percentage and voltage.
• Works Without Battery: The inverter can operate without a battery, providing flexibility for systems that are not battery-dependent.
• Solar MPPT Charge Controller:
  • Maximum PV Array Open Circuit Voltage: 500V DC
  • Maximum PV Array Power: 6000W+
  • MPPT Range: 60V-450V DC
  • Maximum Charge Current: 120A
  • Maximum PV Input Current: 27A
  • Maximum Efficiency: 98% for optimal energy conversion.
• Communication Interface: Built-in WiFi for remote monitoring and RS485 for BMS (Battery Management System) compatibility with lithium batteries.
• Display: LCD screen for easy monitoring of system status and settings.
• Operating Environment:
  • Humidity: 5% to 90% (non-condensing)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C
• Physical Dimensions: 125mm x 340mm x 420mm, weighing 9kg for compact and lightweight installation.
• RGB Lights: For status indication, making it easy to monitor inverter health and operation at a glance.
• Warranty: 2-year parts replacement warranty for peace of mind.

The SolarMax Solon Dual Series 6KW off-grid inverter is designed to offer efficient power conversion and reliable performance for both normal and heavy load applications. Its MPPT charge controller, dual AC outputs, and ability to function without a battery make it a flexible choice for various energy needs. The built-in WiFi and LCD display provide ease of monitoring and configuration, while the two-year warranty ensures long-term satisfaction with the product.

Note : (Two Year parts replacement warranty)
