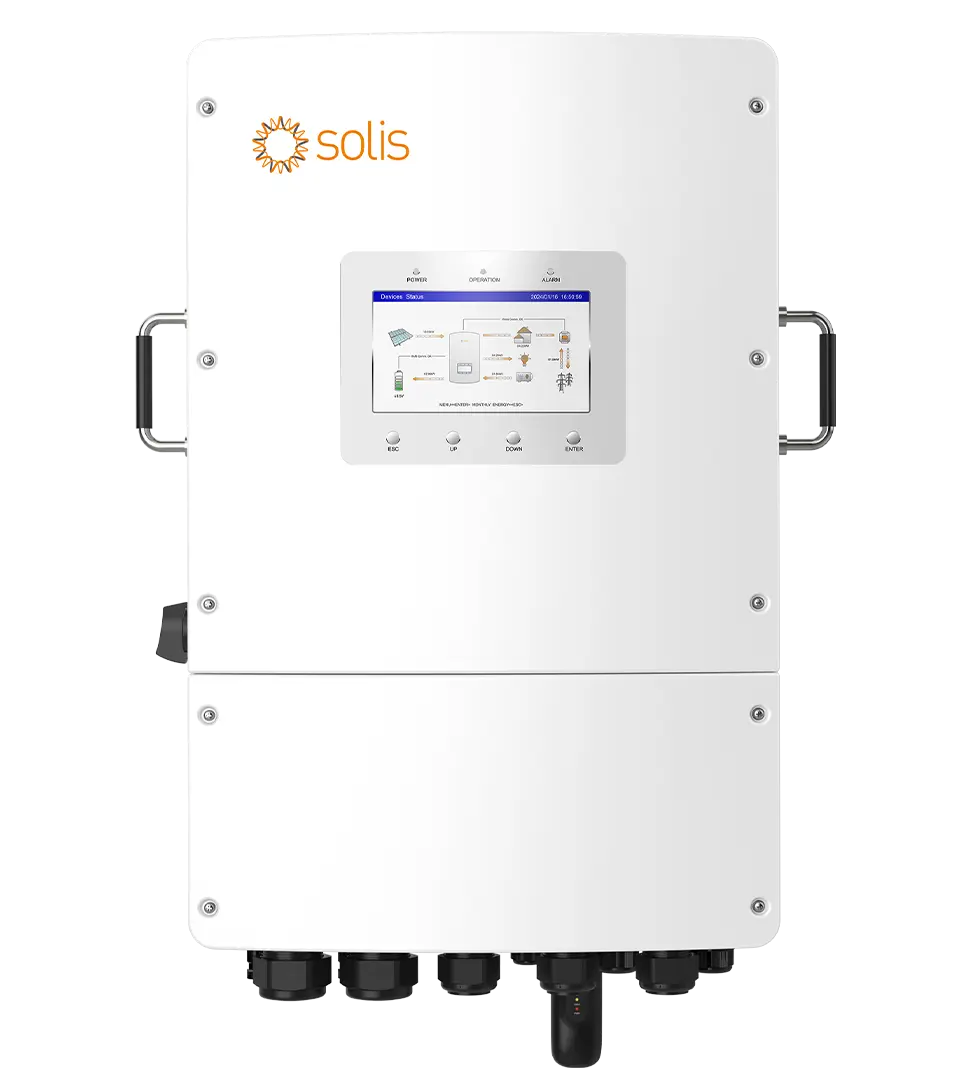

Solis S6-EH3P (8kW) Hybrid Inverter Solis
Solis S6-EH1P 6kw & 8kW Hybrid Inverters Solis
Solis S6-EH1P 6kw & 8kW Hybrid Inverters Solis
Solis S6-EH3P (8kW) Hybrid Inverter Solis

Solis S6-EH1P 6kw & 8kW Hybrid Inverters

Solis S6-EH1P (6kW & 8kW) Hybrid Inverters The Solis S6-EH1P(6K & 8K)-L-PLUS hybrid inverters are advanced single-phase...
Vendor: Solis
Availability: Many In Stock
Product type: Inverter
Rs.245,000.00
Rs.355,000.00
Rs.245,000.00
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
KW: 6kW
Subtotal: Rs.245,000.00
ORDER ON WHATSAPP
10 customers are viewing this product
Solis S6-EH3P (8kW) Hybrid Inverter Solis

Solis S6-EH1P 6kw & 8kW Hybrid Inverters

Rs.355,000.00 Rs.245,000.00
Solis S6-EH1P 6kw & 8kW Hybrid Inverters Solis
Solis S6-EH1P 6kw & 8kW Hybrid Inverters Solis
Solis S6-EH3P (8kW) Hybrid Inverter Solis

Solis S6-EH1P 6kw & 8kW Hybrid Inverters

Rs.355,000.00 Rs.245,000.00
KW: 6kW
Description
Description
x

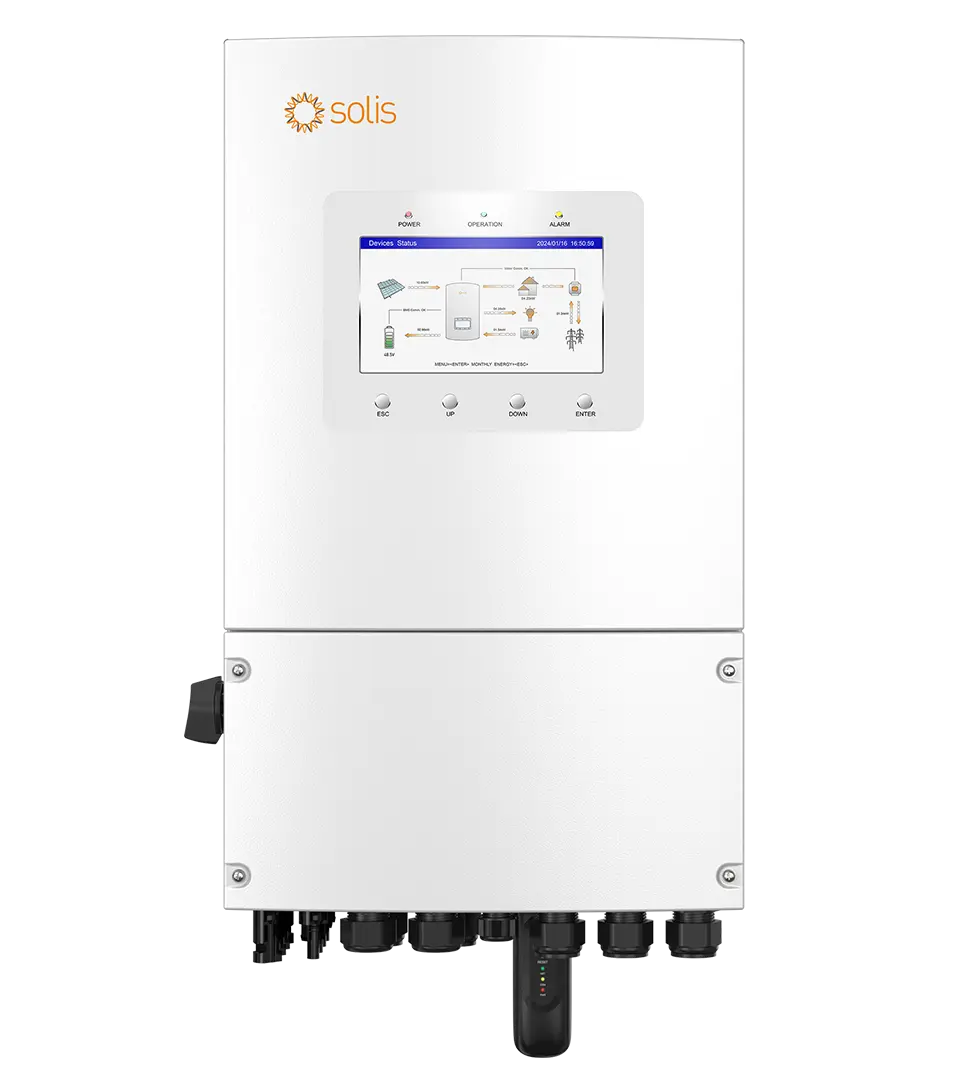

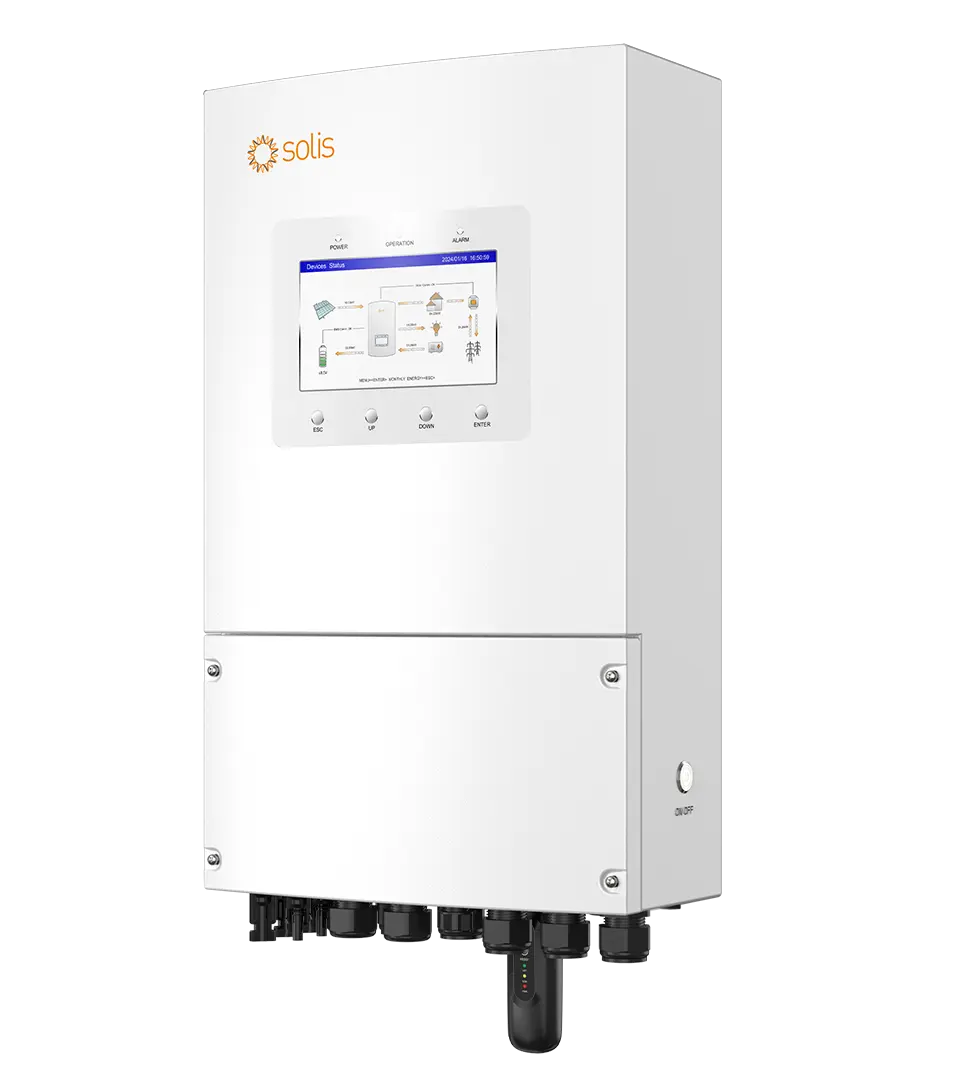

Solis S6-EH1P (6kW & 8kW) Hybrid Inverters

The Solis S6-EH1P(6K & 8K)-L-PLUS hybrid inverters are advanced single-phase energy storage solutions designed for residential applications. They allow homeowners to maximize solar energy use with 160% PV oversizing, seamless battery integration, and smart energy management.

Equipped with AI-driven charging and discharging, the inverters automatically optimize energy flow based on Time-of-Use (TOU) tariffs, helping reduce electricity bills. With a switching time of less than 4ms, they ensure a reliable and uninterrupted power supply during grid outages.

These models are compatible with both lithium-ion and lead-acid batteries, support parallel connections and AC coupling for system expansion, and integrate smoothly with VPP (Virtual Power Plant) and EMS platforms.

Their IP66-rated enclosure, fan-assisted cooling, and wide operating temperature range (-40°C to +60°C) make them durable for indoor and outdoor use. Featuring a 7-inch LCD screen, Bluetooth app support, and flexible communication options (RS485, CAN, Wi-Fi, GPRS, LAN), the Solis S6-EH1P series provides ease of use, flexibility, and high performance for today’s smart homes.

Specifications – Solis S6-EH1P(6K & 8K) Hybrid Inverters

Category S6-EH1P(6K)-L-PLUS S6-EH1P(8K)-L-PLUS
PV Input (DC side)
Recommended Max. PV Array Size 12 kW 16 kW
Max. Usable PV Input Power 9.6 kW 12.8 kW
Max. Input Voltage 500 V 500 V
Rated Voltage 330 V 330 V
Start-up Voltage 90 V 90 V
MPPT Voltage Range 90 – 435 V 90 – 435 V
Max. Input Current 32 A / 32 A 32 A / 32 A
Max. Short Circuit Current 40 A / 40 A 40 A / 40 A
MPPTs / Max. Input Strings 2 / 4 2 / 4
Battery
Battery Type Li-ion / Lead-acid Li-ion / Lead-acid
Battery Voltage Range 40 – 60 V 40 – 60 V
Max. Charge / Discharge Power 6 kW 8 kW
Max. Charge / Discharge Current 135 A 190 A
Communication CAN / RS485 CAN / RS485
AC Output (Grid side)
Rated Output Power 6 kW 8 kW
Max. Apparent Output Power 6 kVA 8 kVA
Operation Phase L / N / PE L / N / PE
Rated Grid Voltage 220 V / 230 V 220 V / 230 V
Rated Grid Frequency 50 Hz 50 Hz
Rated Grid Output Current 27.3 A / 26.1 A 36.4 A / 34.8 A
Max. Output Current 27.3 A / 26.1 A 36.4 A / 34.8 A
Power Factor >0.99 (adjustable 0.8 leading – 0.8 lagging) >0.99 (adjustable 0.8 leading – 0.8 lagging)
THDi <2% <2%
AC Input (Grid side)
Input Voltage Range 187 – 253 V 187 – 253 V
Max. Input Current 40 A 50 A
Frequency Range 45–55 Hz / 55–65 Hz 45–55 Hz / 55–65 Hz
AC Output (Back-up)
Rated Output Power 6 kW 8 kW
Max. Apparent Power 2× rated power (10s) 2× rated power (10s)
Switching Time <4 ms <4 ms
Rated Output Voltage 220 V / 230 V (L/N/PE) 220 V / 230 V (L/N/PE)
Rated Frequency 50 Hz 50 Hz
Rated Output Current 27.3 A / 26.1 A 36.4 A / 34.8 A
Max. AC Passthrough Current 40 A 50 A
THDv (@ linear load) <2% <2%
Generator Input 6 kW 8 kW
Efficiency
Max. Efficiency 96.2% 96.2%
European Efficiency 96.1% 96.1%
Battery Charge Efficiency (PV / AC) 95.3% / 93.9% 95.3% / 93.9%
Battery Discharge Efficiency (to AC) 93.8% 93.8%
General Data
Dimensions (W×H×D) 335 × 560 × 253 mm 335 × 560 × 253 mm
Weight 23.5 kg 23.5 kg
Topology High frequency isolation (for battery) High frequency isolation (for battery)
Operating Temperature -40°C ~ +60°C -40°C ~ +60°C
Ingress Protection IP66 IP66
Noise Emission <65 dB(A) <65 dB(A)
Cooling Intelligent fan cooling Intelligent fan cooling
Max. Altitude 3000 m 3000 m
Interface & Communication
Display 7-inch LCD + Bluetooth App 7-inch LCD + Bluetooth App
Communication RS485, CAN (Wi-Fi, GPRS, LAN optional) RS485, CAN (Wi-Fi, GPRS, LAN optional)
DC Connection MC4 (PV), Terminal Block (Battery) MC4 (PV), Terminal Block (Battery)
AC Connection Terminal Block Terminal Block
Standards IEC 62116, IEC 61727, EN 50530, IEC/EN 62109-1/-2, etc. IEC 62116, IEC 61727, EN 50530, IEC/EN 62109-1/-2, etc.
